Product Introduction of KSD301 Bimetal Thermostat Overheat Protection Switch
Widely used for electric kettle, cooking machine, heater, coffee machine, water dispenser, rice cooker, vacuum cleaner, microwave oven, disinfection gun, steam iron, warm water bag, overgluing machine and other household appliances, machinery, office equipment and medical equipment
Current Ratinf(Ir): 5A,10A,15A 16A;
Voltage Rating(Ur):125V 250V ac;
Tf Tolerance: ±5℃
Electric intensity: AC2000V 50/60Hz
Contact resistance: less than 50mΩ
Insulation resistance: more than 100MΩ
Response speed: ≤1℃/min
Life time: more than 30000 cycles
Approvals: UL TUV CQC
Action Temperature(Tf) & Reset Temperature(Tr)
| Tf | Tr | Tf | Tr |
| 45℃ | 40±6℃ | 145℃ | 115±15℃ |
| 50℃ | 43±6℃ | 150℃ | 120±15℃ |
| 55℃ | 45±6℃ | 155℃ | 125±15℃ |
| 60℃ | 50±10℃ | 160℃ | 130±15℃ |
| 65℃ | 50±10℃ | 165℃ | 135±15℃ |
| 70℃ | 50±10℃ | 170℃ | 140±15℃ |
| 75℃ | 55±10℃ | 175℃ | 145±15℃ |
| 80℃ | 55±10℃ | 180℃ | 150±15℃ |
| 85℃ | 55±10℃ | 185℃ | 160±15℃ |
| 90℃ | 60±10℃ | 190℃ | 165±15℃ |
| 95℃ | 65±10℃ | 200℃ | 170±15℃ |
| 100℃ | 75±10℃ | 210℃ | 175±15℃ |
| 105℃ | 80±15℃ | 215℃ | 180±15℃ |
| 110℃ | 80±15℃ | 220℃ | 185±15℃ |
| 115℃ | 85±15℃ | 230℃ | 195±15℃ |
| 120℃ | 90±15℃ | 240℃ | 205±15℃ |
| 125℃ | 95±15℃ | 250℃ | 215±15℃ |
| 130℃ | 100±15℃ | 260℃ | 225±15℃ |
| 135℃ | 105±15℃ | 270℃ | 235±15℃ |
| 140℃ | 110±15℃ | 280℃ | 245±15℃ |
| Custom specification can be manufactured as request. |

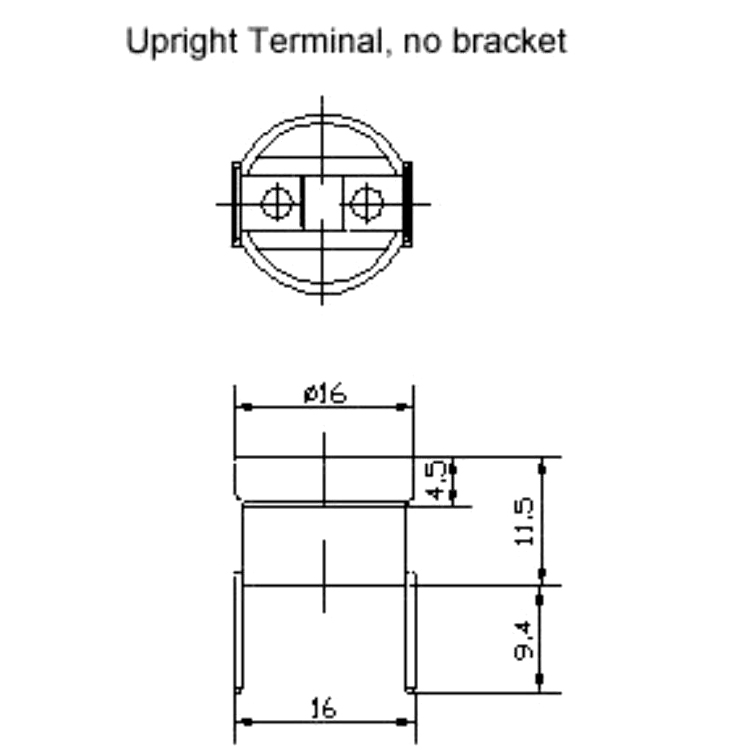

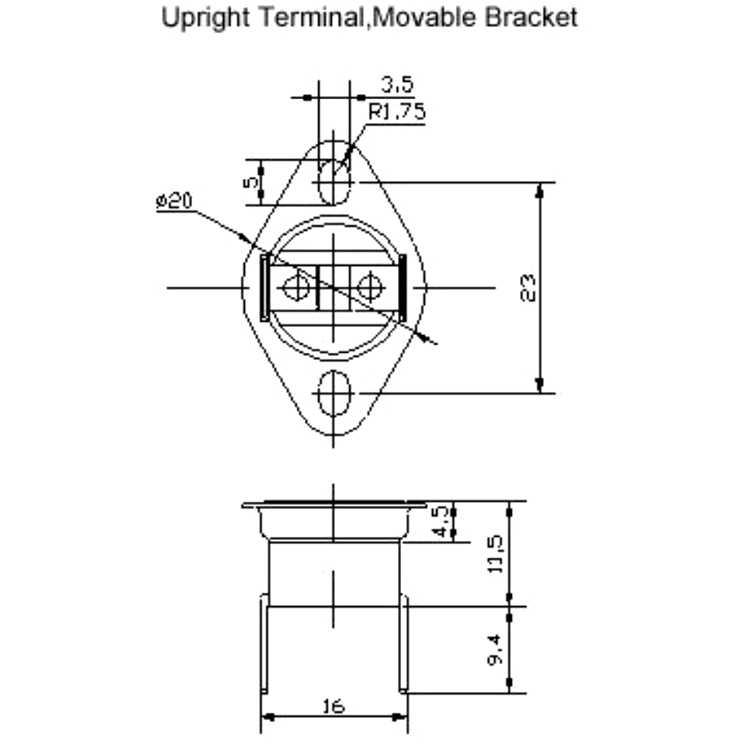

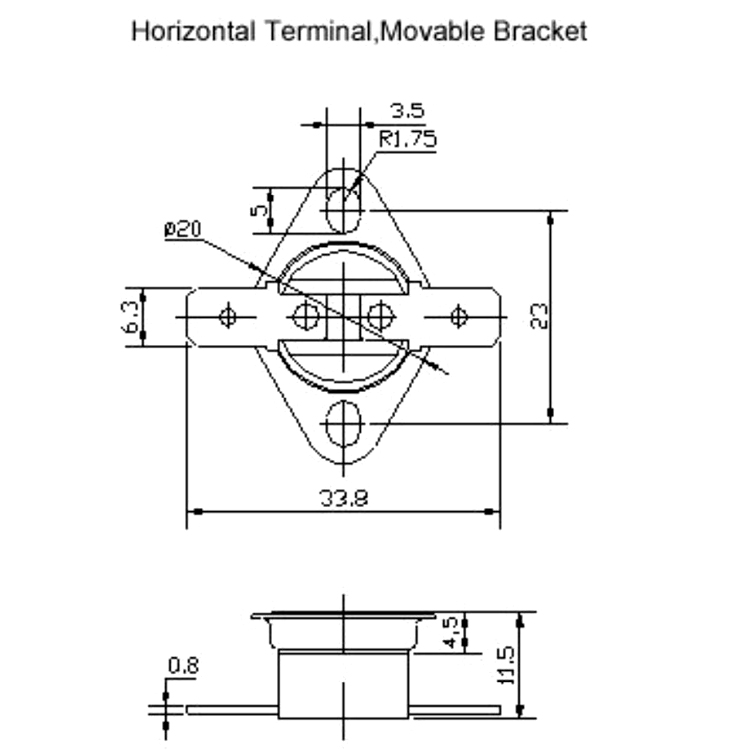

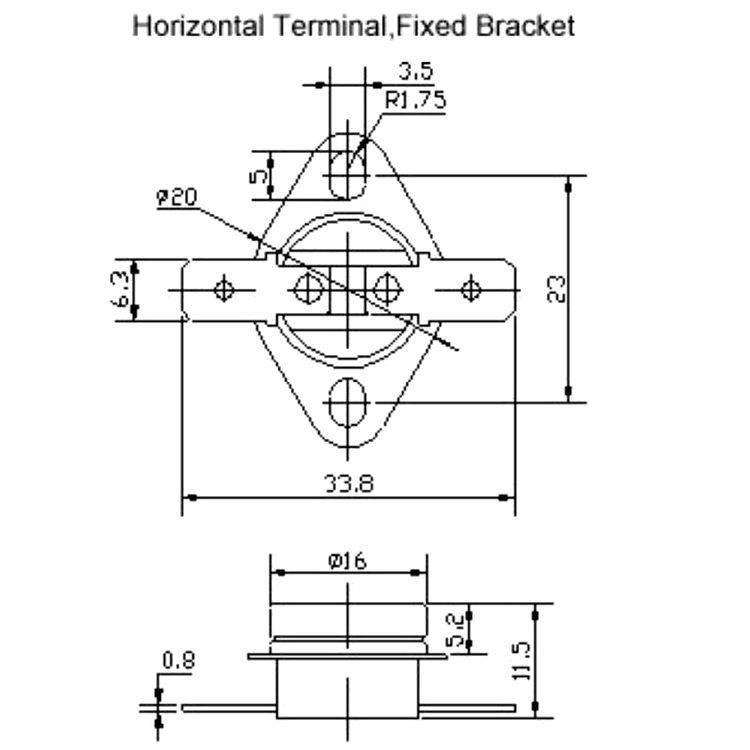

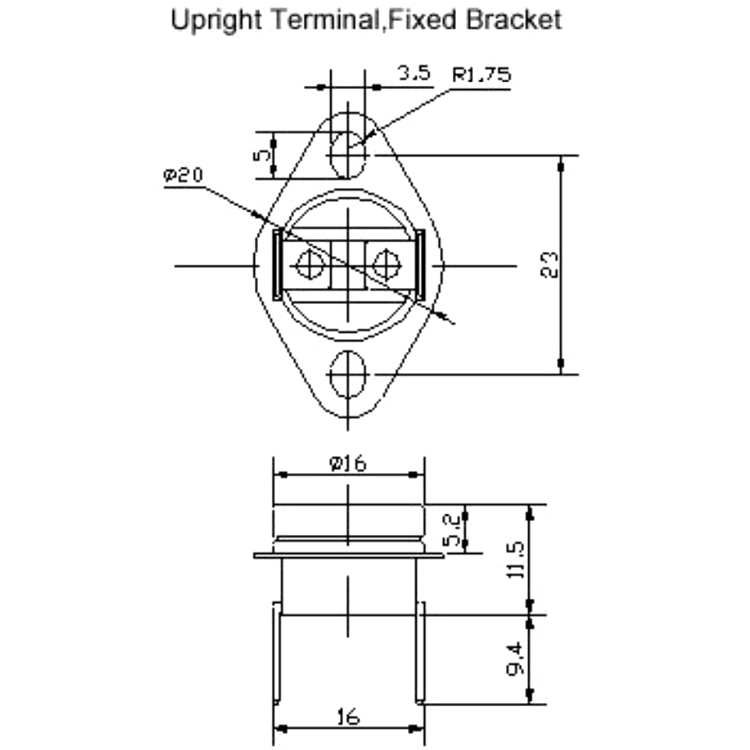

Dimension of KSD301 Bimetal Thermostat Overheat Protection Switch
What's the difference between NC and NO?
Normally Closed: the thermostat is closed(connected) at normal status
Normally Open: the thermostat is open(disconnected) at normal status
Please Note :
- During installation, the switch should be completely fixed close to the mounting surface of the tested appliance.
- Do not collapse or deform the plastic / metal shell during installation.
- For metal temperature controller, do not remove the insulating sleeve to avoid electric leakage.
- Not suitable for air temperature sensing, only applied to contact sensing.
Standard Package
100pcs per bag
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
Test Equipment
Q: Are you trading company or manufacturer ?
A: We are a fuse product factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
KSD301 Bimetal Thermostat Overheat Protection Switches
Product Tags:
|
|

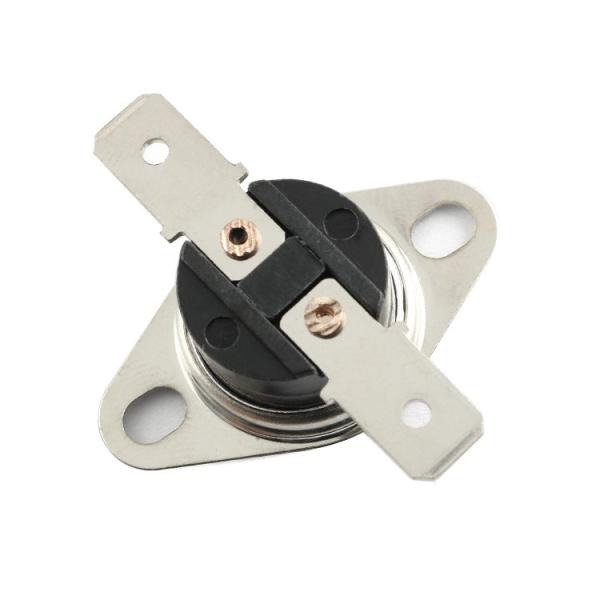

250 Tab KSD301 Bimetal Thermostat Overheat Protection Switch For Water Heaters Boilers Images
|
